Contribution Guidelines

Thank you for your interest in contributing to the Petal Stack! This guide will help you understand the dependency architecture and version management across all repositories.

Dependency Architecture

Understanding the Petal Stack Dependencies

The Petal Stack consists of multiple repositories with specific dependency relationships:

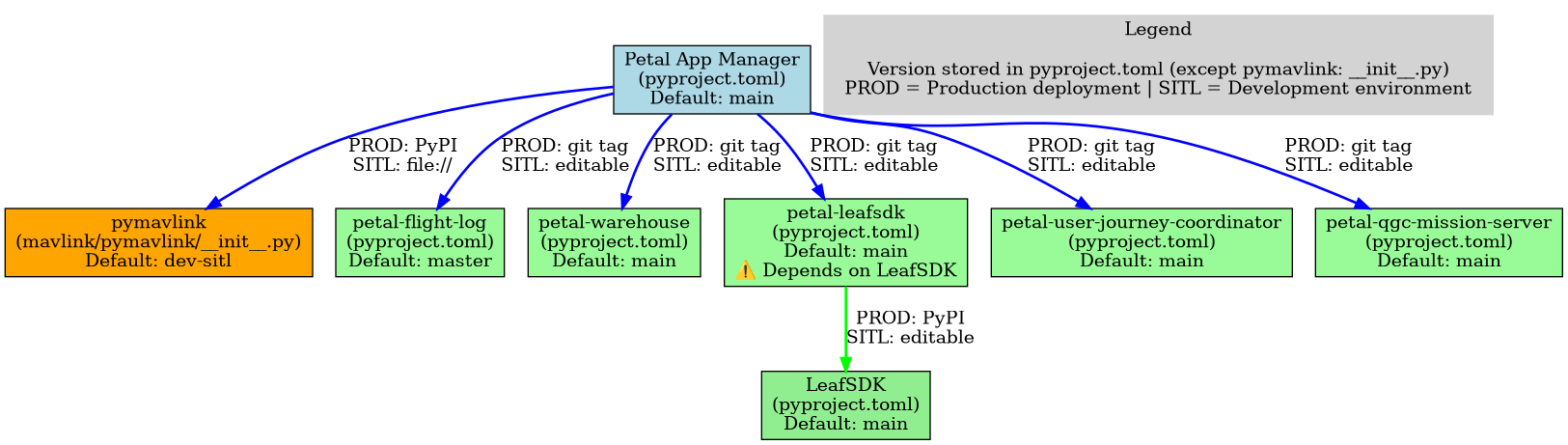

Petal Stack Dependency Architecture

Key Points:

• PAM (Petal App Manager): Only depends on pymavlink and the petals

• petal-leafsdk: Special case - depends on LeafSDK

• Production (PROD): Uses PyPI packages or git tags for stable releases

• SITL (Development): Uses editable installs for live development

• CI/CD: Does not install petals (framework testing only)

Version Management by Repository

Petal App Manager

Repository: petal-app-manager

Default Branch: main

Version Location: pyproject.toml

Deployment Modes:

• Production: Installs petals directly from git tags (versions specified in pyproject.toml)

• CI/CD: Does not install petals (framework testing only)

• SITL: Installs petals in editable mode + LeafSDK (editable)

Release Process:

1. Update version in pyproject.toml

2. Update petal versions in pyproject.toml under [project.optional-dependencies]

3. Commit changes

4. Create and push git tag: git tag v0.1.x && git push origin v0.1.x

Individual Petals

All petals follow the same versioning pattern:

petal-flight-log

Default Branch: master

Version Location: pyproject.toml

Release Process:

1. Bump version in pyproject.toml

2. Commit changes

3. Create and push git tag: git tag v0.1.x && git push origin v0.1.x

4. PAM will install in production directly from this git tag

petal-warehouse

Default Branch: main

Version Location: pyproject.toml

Release Process: Same as petal-flight-log

petal-user-journey-coordinator

Default Branch: main

Version Location: pyproject.toml

Release Process: Same as petal-flight-log

petal-qgc-mission-server

Default Branch: main

Version Location: pyproject.toml

Release Process: Same as petal-flight-log

petal-leafsdk (Special Case)

Default Branch: main

Version Location: pyproject.toml

⚠️ Important: This petal depends on LeafSDK

Release Process:

1. First, ensure LeafSDK is updated and published to PyPI (see below)

2. Bump LeafSDK version in petal-leafsdk’s pyproject.toml dependencies

3. Bump petal-leafsdk version in pyproject.toml

4. Commit changes

5. Create and push git tag: git tag v0.1.x && git push origin v0.1.x

Non-Petal Packages

LeafSDK

Repository: LeafSDK

Default Branch: main

Version Location: pyproject.toml

Deployment:

• Production: Installed from PyPI (due to dependency from petal-leafsdk)

• SITL: Installed in editable mode

Release Process:

1. Commit all changes

2. Bump version in pyproject.toml

3. Create and push git tag: git tag v0.2.x && git push origin v0.2.x

4. This triggers a CI/CD workflow to publish to PyPI

mavlink/pymavlink (Very Special Case)

Repository: leaf-mavlink

Default Branch: dev-sitl

Version Location: mavlink/pymavlink/__init__.py

Deployment:

• Production: Installed from PyPI

• CI/CD: Installed from PyPI

• SITL: Installed via file:// (not editable, requires rebuild)

⚠️ Critical Notes:

• Message definitions and pymavlink must be maintained together

• Always commit both message changes and submodule updates together

• Ensure the mavlink repository is checked out to dev-sitl branch

Release Process:

1. Add/Modify MAVLink Messages:

   # Edit message definitions
   cd ~/petal-app-manager-dev/mavlink
   # Ensure on dev-sitl branch
   git checkout dev-sitl

   # Edit: message_definitions/v1.0/droneleaf_mav_msgs.xml
   # Add your new message definitions


2. Format XML Files (if CI/CD “Formatting Checks” job fails):

   cd ~/petal-app-manager-dev/mavlink
   ./scripts/format_xml.sh /v1.0/common.xml
   ./scripts/format_xml.sh /v1.0/droneleaf_mav_msgs.xml


3. Bump pymavlink Version:

   # Edit: mavlink/pymavlink/__init__.py
   # Update __version__ = '0.1.x'


4. Commit All Changes (including submodule updates):

   cd ~/petal-app-manager-dev/mavlink/pymavlink
   git add .
   git commit -m "chore: bump version to 0.1.x"

   # IMPORTANT: Also commit the submodule update in parent if needed
   cd ~/petal-app-manager-dev/mavlink
   git add .
   git commit -m "feat: add new MAVLink message definitions"


5. Tag and Push:

   # Tag the latest commit on mavlink/pymavlink
   cd ~/petal-app-manager-dev/mavlink/pymavlink
   git tag v0.1.x
   git push origin dev-sitl
   git push origin v0.1.x

   # This triggers a release to PyPI via workflow


MAVLink Message Definition Location:

~/petal-app-manager-dev/mavlink/message_definitions/v1.0/droneleaf_mav_msgs.xml

Example message definition structure:

<message id="77000" name="LEAF_MODE">
  <description>The system mode, as defined by enum LEAF_MODE</description>
  <field type="uint8_t" name="mode" enum="LEAF_MODE">The new leaf mode.</field>
</message>

Adding New DroneLeaf MAVLink Messages

When adding a new custom DroneLeaf message, follow this complete workflow:

Step 1: Define the Message in XML

Edit message_definitions/v1.0/droneleaf_mav_msgs.xml:

<!-- Add a new message -->
<message id="77XXX" name="LEAF_YOUR_NEW_MESSAGE">
  <description>Description of what this message does</description>
  <field type="uint8_t" name="status">Status field description</field>
  <field type="float" name="value">Value field description</field>
</message>

<!-- Add a new enum (if needed) -->
<enum name="LEAF_YOUR_NEW_ENUM">
  <entry value="0" name="LEAF_YOUR_NEW_ENUM_VALUE1">
    <description>First value description</description>
  </entry>
  <entry value="1" name="LEAF_YOUR_NEW_ENUM_VALUE2">
    <description>Second value description</description>
  </entry>
</enum>

Step 2: Use the Message in Python Code

After the message is built into pymavlink, use it in your petal code:

from pymavlink.dialects.v20 import droneleaf_mav_msgs as leafMAV

# Register a handler for receiving the message
proxy.register_handler(
    str(leafMAV.MAVLINK_MSG_ID_LEAF_YOUR_NEW_MESSAGE),
    my_handler_function
)

# Create and send the message
msg = leafMAV.MAVLink_leaf_your_new_message(
    status=1,
    value=3.14
)
proxy.send("mav", msg)

# Use enum values
if current_status == leafMAV.LEAF_YOUR_NEW_ENUM_VALUE1:
    # Handle this state
    pass

Step 3: Register in Message Verification Config

Edit mavlink/pymavlink/.github/workflows/required_pymavlink_messages.json to register your new symbols. This ensures CI verifies they exist after building pymavlink.

{
  "dialects": {
    "pymavlink.dialects.v20.droneleaf_mav_msgs": {
      "message_ids": {
        "items": [
          "MAVLINK_MSG_ID_LEAF_STATUS",
          "MAVLINK_MSG_ID_LEAF_YOUR_NEW_MESSAGE"
        ]
      },
      "message_classes": {
        "items": [
          "MAVLink_leaf_status_message",
          "MAVLink_leaf_your_new_message"
        ]
      },
      "enums": {
        "LEAF_YOUR_NEW_ENUM": [
          "LEAF_YOUR_NEW_ENUM_VALUE1",
          "LEAF_YOUR_NEW_ENUM_VALUE2"
        ]
      }
    }
  }
}

What to Register:

Message Verification Categories

Category	Example	When to Add
message_ids	MAVLINK_MSG_ID_LEAF_STATUS	When you register a handler for the message
message_classes	MAVLink_leaf_status_message	When you create/send the message
enums	LEAF_STATUS_FLYING	When you use enum values in code
constants	ENABLED_ALWAYS	When you use standalone constants

Step 4: Verify Locally (Optional)

# Create and activate a virtual environment with Python 3.11
cd ~/petal-app-manager-dev/mavlink/pymavlink
python3.11 -m venv .venv
source .venv/bin/activate

# Build and install pymavlink with new message definitions
# MDEF must point to the message_definitions directory
MDEF=~/petal-app-manager-dev/mavlink/message_definitions/v1.0 python3 -m pip install . -v

# Run verification script
python .github/workflows/verify_pymavlink_messages.py --verbose

Note

The MDEF environment variable must point to the directory containing the message definition XML files. Typically, this is the message_definitions/v1.0 folder in the mavlink repository (e.g., /home/droneleaf/petal-app-manager-dev/mavlink/message_definitions/v1.0).

Step 5: Commit, Tag, and Push

Follow the standard release process above. The CI workflow will:

1. Clone leaf-mavlink with latest message definitions

2. Build pymavlink from source

3. Run the verification script

4. Fail if any registered symbol is missing

⚠️ Important: Only messages that are actually used in source code should be registered in the verification config - not all messages from the dialect files.

Version Summary Table

Repository Version Management

Repository	Default Branch	Version File	Installation Method
petal-app-manager	main	pyproject.toml	PROD: git tag | SITL: editable
petal-flight-log	master	pyproject.toml	PROD: git tag | SITL: editable
petal-warehouse	main	pyproject.toml	PROD: git tag | SITL: editable
petal-user-journey-coordinator	main	pyproject.toml	PROD: git tag | SITL: editable
petal-qgc-mission-server	main	pyproject.toml	PROD: git tag | SITL: editable
petal-leafsdk	main	pyproject.toml	PROD: git tag | SITL: editable (⚠️ depends on LeafSDK)
LeafSDK	main	pyproject.toml	PROD: PyPI | SITL: editable
leaf-mavlink (pymavlink)	dev-sitl	pymavlink/__init__.py	PROD: PyPI | CI/CD: PyPI | SITL: file://

Getting Help

Communication Channels

• GitHub Issues: For bug reports and feature requests

• GitHub Discussions: For questions and general discussion

• Pull Request Comments: For code-specific questions

Resources

• Getting Started - Setup guides

• Adding a New Petal Guide - Petal development guide

• API Reference - API documentation

• Known Issues - Common problems and solutions

Thank you for contributing to the Petal Stack! 🚁✨
